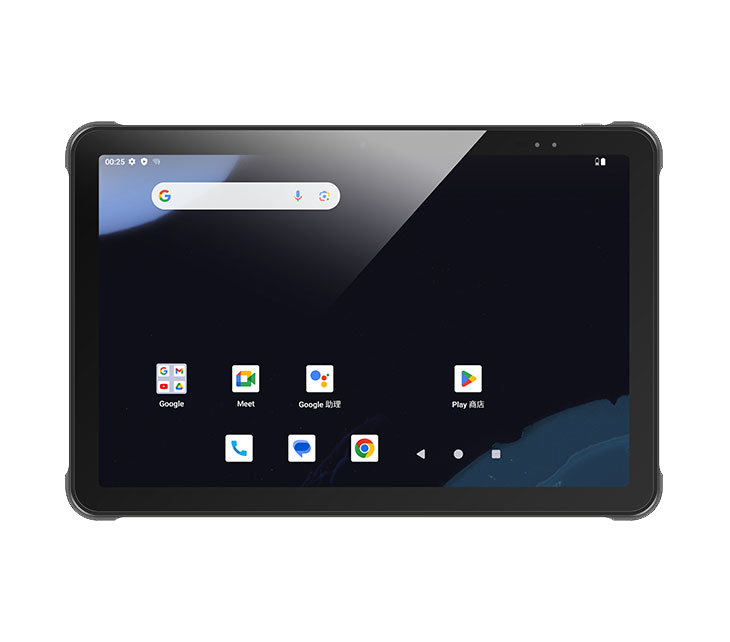

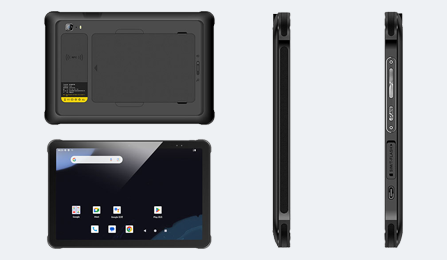

Rugged Tablet RHINO MOBILITY R11

R11

11inch /Android14/Battery10000mAh /CPU2.2GHZ/Octa Core/IP67/High Performance 2D Scanner

Features

• 11inch display, Support for Android 14 system
• Integrated 4G all network communication, WiFi6, Bluetooth V5.2 and other communication modes
• 10000mAh battery, 16 hours of machine endurance
• IP67 high protection level, in accordance with MIL-STD-810G
• Support GPS, Glonass, Beidou, more accurate positioning
• Support 13 million pixel auto focus camera, easy to collect images and video information
• Support 1D/2D, NFC and other functional modules for free se lection

Rugged Tablet PC R11

11inch 1920x1200

Battery: 10000mAh

CPU:2.2GHZ    Octa: Core

RAM: 4GB DDR4  ROM: 64GB / RAM:8GB DDR4   ROM:256GB

IP Rating:67

 Honeywell N6803FR High Performance Auto Range 2D  Barcode Scanner



Application Range

Various modules and accessories can be selected to meet customers' application in various industries.

It cancsuitable for: Field Mobility, Outdoor Exploration, Military Equipment, Finance, Animal Husbandry, Equipment Testing, Industrial Automation, Vehicle, Medical Care,Warehouse Management, Transportation, Manufacturing, Retail, Manufacturing, ...



Physical Characteristics

Dimensions: 263.5 x 175.0 x 13.5 mm / 10.37 x 6.89 x 0.53 in. (for standard version)
Weight: 802g / 28.29 oz. (for standard version)
Display: 11", 1920x1200
Touch Panel: Corning Glass, multi-touch panel, gloves and wet hands supported
Power: 10000mAh removable main battery with meter, support fast charge
Expansion Slot: 1 PSAM card (optional); 1 slot for Nano SlM card, 1 slot for Nano SlM /TF card
Interfaces: USB 3.0 Type-C, OTG, support USB Type-C Digital Earphone
Audio: 2 microphone, 2 speakers
Keypad: 1 scan key, 1 power key, 1 volume keys (+/-), 2 virtual keys



Optional modules Tablet PC

NFC: Support ISO/IEC 14443A protocol Card reading distance: 3-5cm

2D Auto range Barcode Scanner Honeywell N6803FR

Specification

SPECIFICATIONS

Physical Characteristics
Dimensions 263.5 x 175.0 x 13.5 mm / 10.37 x 6.89 x 0.53 in. (for standard version)
Weight 802g / 28.29 oz. (for standard version)
Display 10.95", 1920x1200
Touch Panel Corning Glass, multi-touch panel, gloves and wet hands supported
Power 10000mAh removable main battery with meter, support fast charge
Expansion Slot 1 PSAM card (optional); 1 slot for Nano SlM card, 1 slot for Nano SlM /TF card
Interfaces USB 3.0 Type-C, OTG, support USB Type-C Digital Earphone
Audio 2 microphone, 2 speakers
Keypad 1 scan key, 1 power key, 1 volume keys (+/-), 2 virtual keys
Communication
WLAN Support 802.11 a/b/g/n/ac, 2.4G/5G dual-band; Wi-Fi 6E (optional)
WWAN 2G: GSM:B2/B3/B5/B8
3G: WCDMA:B1/B2/B4/B5/B8
4G: TDD LTE: B34/B38/B39/B40/B41 190M
       FDD LTE: B1/B2/B3/B4/B5/B7/B8/B12/B17/
       B18/B20/B28ab
Bluetooth Bluetooth V5.2, support Bluetooth headset
Vo-LTE Support Vo-LTE HD video voice call Galileo
GNSS GPS/AGPS, GLONASS, BeiDou, Galileo
Developing Environment
Operating System Android 14
SDK RHINO MOBILITY Software Development Kit
Language Java
Tool Eclipse/Android studio
Performance
CPU Octa-core 2.2 GHz
RAM+ROM 4GB + 64GB / 8GB + 256GB (optional)
Expansion Supports up to 512 GB Micro SD card
User Environment
Operating Temp. -4°F to 122°F / -20°C to 50°C
Storage Temp. -40°F to 158°F / -40°C to 70°C
Humidity 5% RH-95% RH (non condensing)
Drop Specification MIL-STD-810H (SGS Test): Multiple 1.2 m / 3.94 ft. drops to concrete across the operating temperature range
Sealing IP67 per lEC sealing specifications
ESD ±15 KV air discharge, ±8 KV conductive discharge
Barcode Scanning
Scan engine Barcode Scanner's Engine Honeywell N6803FR
1D Symbologies UPC/EAN, Code128, Code39, Code93, Codell, interleaved 2 of 5, Discrete 2 of 5, chinese 2 of 5, Codabar, Msl, Rss,etc.
2D Symbologies PDF417, MicroPDF417, composite, RsS, TLC-39Datamatrix, QR code, Micro QR code, Aztec, Maxicode;Postal Codes: Us PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KlX), etc.
Camera
Front Camera 5 MP
Rear Camera 13 MP Autofocus with flash
NFC
Frequency 13.56 MHZ
Protocol IS014443A/B, IS015693, NFC-IP1, NFC-IP2, etc.
Chips M1 card (s50, s70), CPU card, NFC tags, etc.
Range 2-4 cm
PSAM
Protocol IS07816
Slots 1 PSAM card slot
Note * This function is optional
