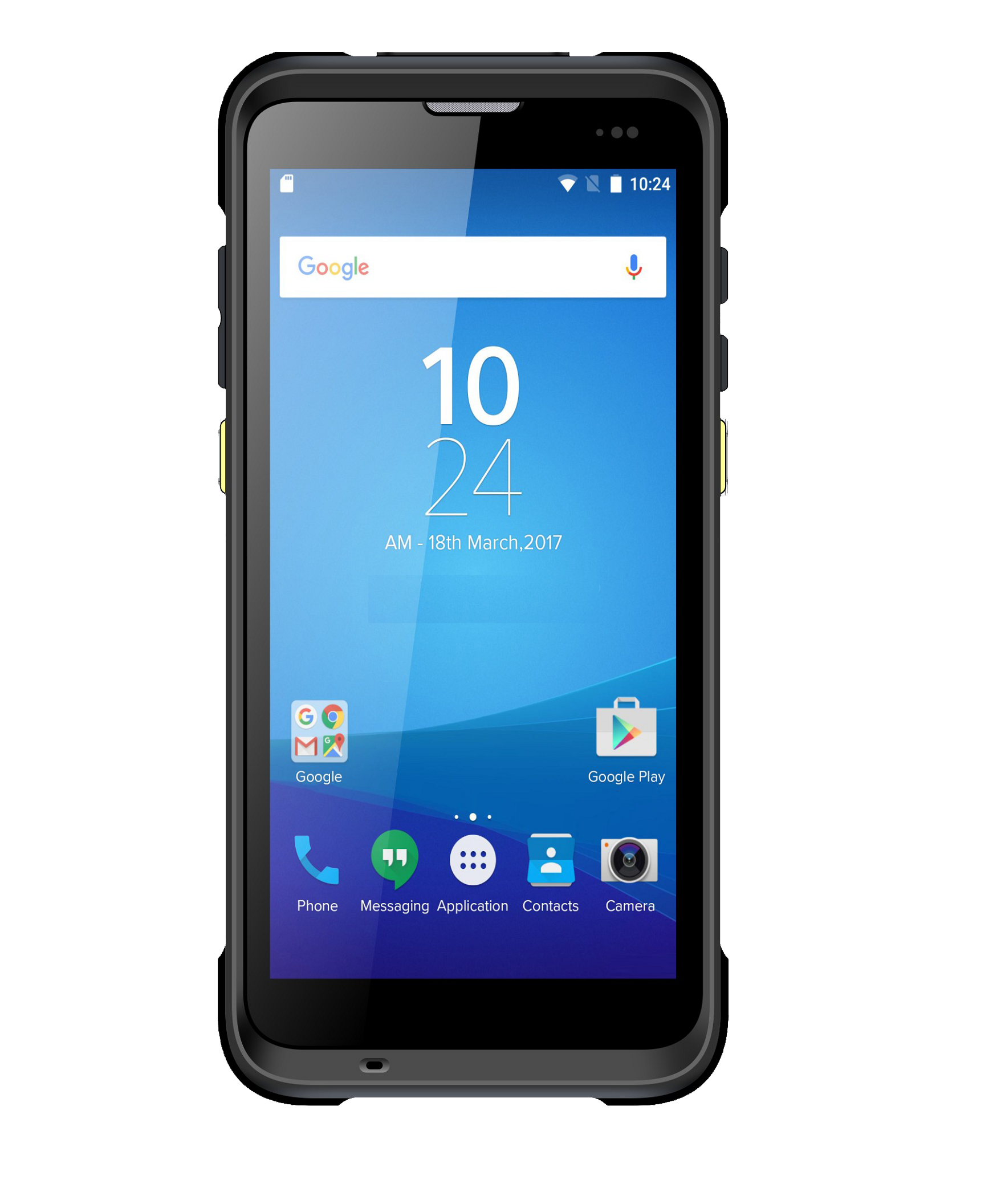

R66 Mobile Computer (Android 13)

R66

Android13+GMS/ 5200mAhBattery/CPU:2GHZ QUALCOMM Octa Core/RAM4GB ROM64GB/IP:68/ High Performance 2D Scanner

Features

  • Support for Android 13+ GMS
  • Integrated 4G all network communication
  • WIFI6, Bluetooth and other communication modes
  • Equipped with 5200mAh large capacity battery
  • IP67 high protection level, in accordance with MIL-STD-810G
  • Support GPS, GLONASS, more accurate positioning
  • Equipped with 13 million pixels auto focus camera
  • Easy to collect images and video information
  • 2D extreme performance barcode scanner Honeywell N6703



Features
Qualcomm Octa-Core 2.0GHzQualcomm Octa-Core 2.0GHz 5.5” HD Display5.5” HD Display
Wi-Fi 6-ReadyWi-Fi 6-Ready Standard 4420mAh / 5200mAh Removable Main Battery with Fast ChargingStandard 5200mAh Removable Main Battery with Fast Charging
Optional Handle & 5200mAh Handle BatteryOptional Handle & 5200mAh Handle Battery IP65 & 1.8m / 6ft. DropIP68 & 1.8m / 6ft. Drop

Functions
Barcode Scanning, NFC, and cameraBarcode Scanning, NFC, and camera Compatible with UHF back clip and R6 UHF SledCompatible with UHF back clip and R6 UHF Sled
Built-In UHF & Fingerprint OptionsBuilt-In UHF & Fingerprint Options

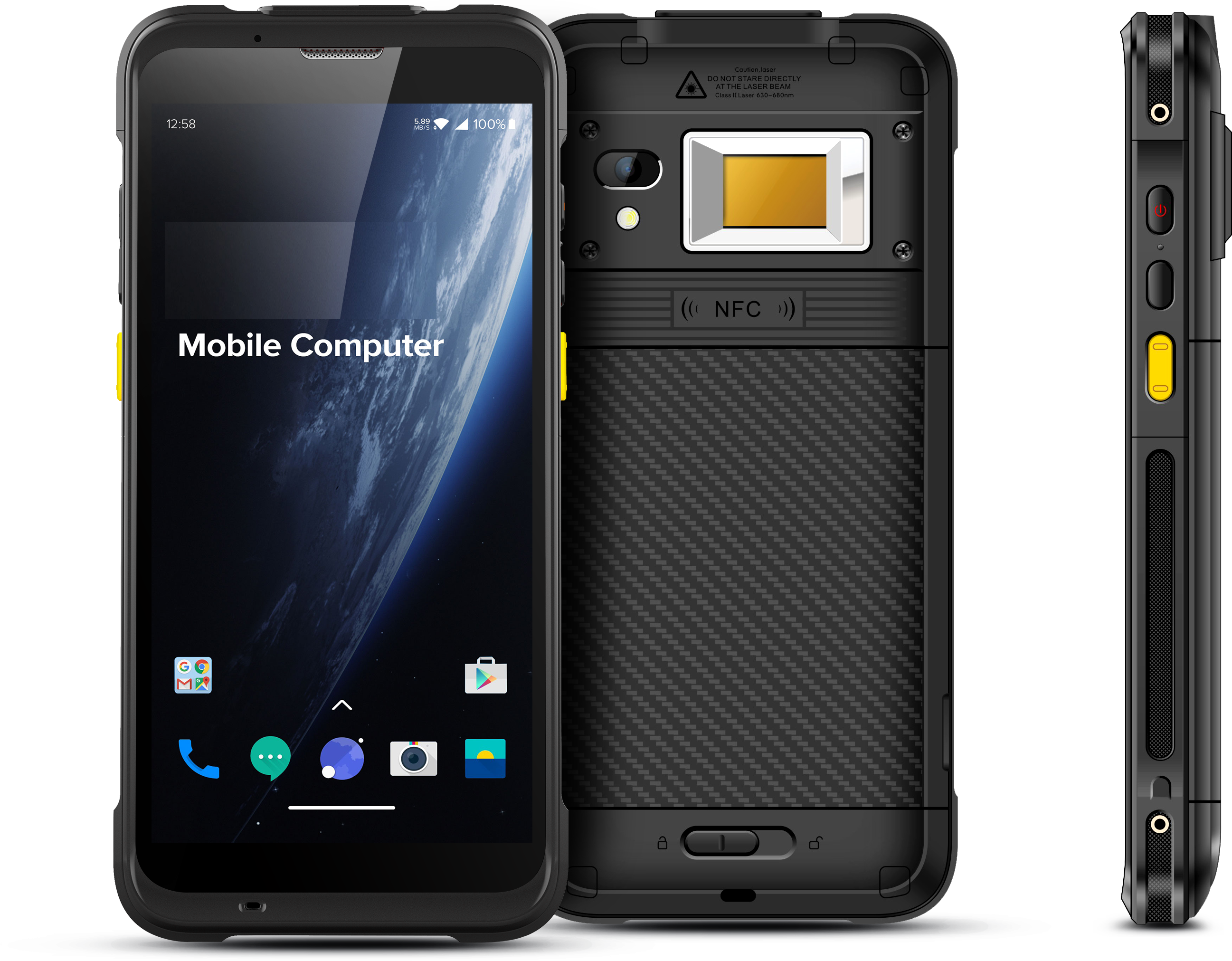

Rugged Handheld R66

5.5inch Android: 13+GMS

Battery: 5200mAh

CPU:2GHZ QUALCOMM   Octa: Core

RAM: 4GB     ROM: 64GB

High Performance 2D Scanner N6703

IP Rating: IP68 & 1.8m / 6ft. Drop

we' made good even better

Improve 40% the speed of its predecessor

Application processors based on 2GHZ QUALCOMM Octa Core  Android 13 OS

TYPE-C Cable is also available

Charging, Audio, Video and Data Transmission

All in one interface

Reversible Type-C Connector

No matter which side to plug in

Hot-swap Battery

5200mAh replaceable battery

Expected Hours of Operation: 24 hours



Industries

Used For
  • Retail
  • FMCG
  • Transportation
  • Hospitality & Healthcare
  • Manufacturing
  • Warehouse Management
  • Goverment
  • Finance
  • Professional Service
  • Transportation
  • Information Lookup
  • Assisted Selling
  • Price Check/Item Lookup
  • Task Assignment and Management
  • Picking and Collecting
  • Personal Device
  • Mobile Point-of-Sale
  • Concierge Service
  • Event Verification
  • Patient Transportation
  • Housekeeping
  • Mobile Sales
  • Shipping and Receiving
  • Inventory Management
  • Asset Tracking
  • Line-Side Replenishment
  • Maintenance/Repair
  • Buy- Online-Pickup-In-Store(BOPIS)
  • Direct Store Delivery (DSD)
  • Put-Away
  • Proof Of Delivery
  • Replenishment
  • Collaboration
  • Employee ID Check
  • Supply-Line Replenishment
  • Safety Testing
  • Quality Control Audits
  • Parts Tracking
  • Receiving/Put-Away
  • Returns Processing
  • Price Audits/Changes
  • EDI Transactions/Picking
  • Cross Dock Operations

The Rhino R66 with multiple features such as high configuration,
shortcut keys, barcode scanning, long-lasting battery life, etc.
The excellent performance makes it ideally deployed in diverse scenarios such as mobile c are,
public utilities, electricity meter reading, and asset management to
help users quickly achie ve informatization management and improve operational efficiency.

Performance parameter

CPU:2GHZ OCTA Core     OS:Android13/GMS

RAM:4GB/64GB LPDDR4X     ROM:64GB/128GB



Specification

Physical Characteristics
Dimensions 160.0 x 76.0 x 15.5 / 17.0mm / 6.3 x 2.99 x 0.61 / 0.67 in.
Weight 287 g / 10.12 oz. (device with battery);
297 g / 10.47 oz. (device with battery, Fingerprint / Built-in UHF)
Display 5.5-inch high definition full display (18:9) , IPS 1440 x 720
Battery Removable main battery  5200mAh
5200 mAh optional pistol battery, support QC 3.0 and RTC
Standby: up to 490 hours (only main battery ; WiFi: up to 470h; 4G: up to 440h)
Continuous use: over 12 hours (depending on user environment)
Charging time: 2.5 hours (charge device by standard adaptor and USB cable)
Touch Panel Multi-touch panel, gloves and wet hands supported
Notification Sound, LED indicator, vibrator
Interfaces USB Type-C, USB 3.1, OTG, extended thimble
Card slot 1 slot for Nano SIM card, 1 slot for Nano SIM or TF card
Audio 2 microphones，1 for noise cancellation；1 speaker；receiver
Keypad 1 power key, 2 scan keys, 2 volume keys
Sensors Accelerometer sensor, light sensor, proximity sensor
gravity sensor, gyroscope sensor(optional)
geomagnetic sensor(optional),

Communication
WLAN Support 802.11 a/b/g/n/ac/ax-ready/d/e/h/i/k/r/v,2.4G/5G dual-band, IPV4, IPV6, 5G PA;
Fast roaming: PMKID caching, 802.11r, OKC;
Operating Channels: 2.4G(channel 1~13), 5G(channel36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132, 136,140,144,149,153,157,161,165),Depends on local regulations;
Security and Encryption: WEP,WPA/WPA2-PSK(TKIP and AES),WAPI- PSK—EAP-TTLS,EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS, PEAP-GTC, WPA3-Enterprise,etc.
WWAN (Europe, Asia) 2G: 850/900/1800/1900 MHz
3G: CDMA EVDO: BC0
       WCDMA: 850/900/1900/2100MHz
       TD-SCDMA: A/F(B34/B39)
4G: B1, B3, B5, B7, B8, B20, B38, B39, B40, B41
WWAN (America) 2G: 850/900/1800/1900 MHz
3G: 850/900/1900/2100 MHz
4G: B2/B4/B5/B7/B8/B12/B13/B17/B28A/B28B/B38
Bluetooth Bluetooth 5.1
Vo-LTE Support Vo-LTE HD video voice call
GNSS GPS/AGPS, GLONASS, BeiDou,Galileo,internal antenna


Developing Environment
Operating Temp. -20 ℃~+50 ℃
Storage Temp. -40 ℃~+70 ℃
Humidity 5% RH - 95% RH non condensing
Drop Specification Multiple 1.8 m / 5.91 ft. drops (at least 20 times) to the concrete across the operating temperature range;
Multiple 2.4 m / 7.87 ft. drops (at least 20 times) to the concrete after installed rubber boot
MIL-STD-810H(SGS Test): Multiple 1.22 M drops (at least 20 times) to the plate across the operating temperature range
Tumble Specification 1000 x 0.5 m / 1.64 ft. falls at room temperature
Sealing IP68 per IEC sealing specifications
ESD ±15 KV air discharge, ±8 KV conductive discharge

Barcode Scanning
Scan engine
Honeywell: N6603/N6703/6803FR
1D Symbologies UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc.
Note * This function is optional

UHF1
Engine UHF CM710-1 module based on Impinj E710
Frequency 865-868 MHz / 920-925 MHz / 902-928 MHz
Impinj Gen2X Supported
Protocol EPC C1 GEN2 / ISO18000-6C
Antenna Circular Polarized Antenna (4dBi)
Power 1W (30dBm, +5 dBm to +30 dBm adjustable)
2W Optional (33dBm, for Latin America, etc.)
Max Read Range 28m (Impinj MR6 tag, size 70 x 15mm)
28m (Impinj M750 tag, size 70 x 15mm)
32m (Alien H3 Anti-Metal tag, size 130 x 42mm)
Fastest Read Rate 1300+ tags/sec
Communication Mode Pin Connector

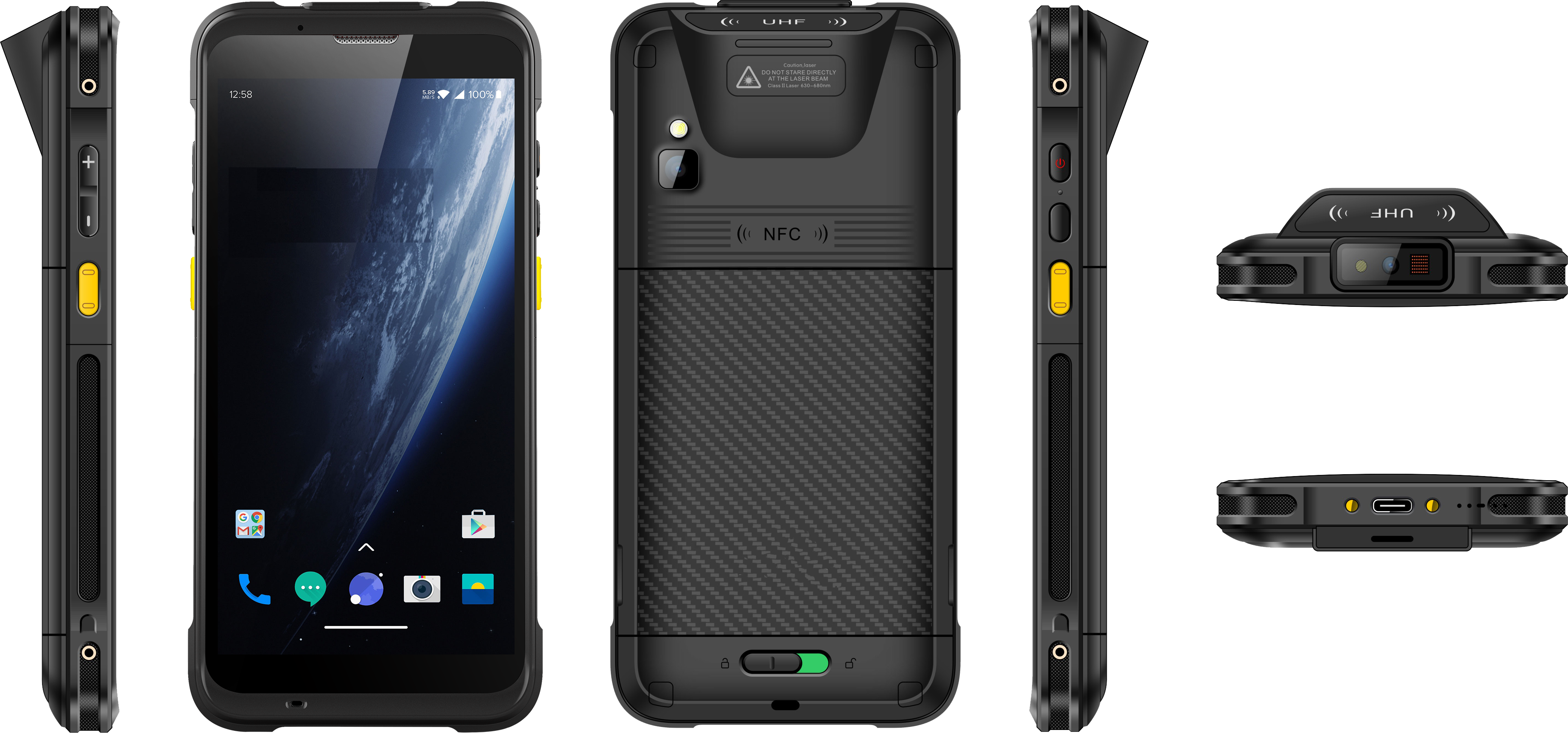

Note * R66 UHF (Back Clip)
* Ranges are measured in the open outdoors and low interference environment, and rate is measured in a laboratory low interference environment, they are affected by tags and environment.;
* This function is optional

UHF2
Engine UHF CM710-1 module based on Impinj E710
Frequency 865-868 MHz / 920-925 MHz / 902-928 MHz
Protocol EPC C1 GEN2 / ISO18000-6C, supports GS1 EPC Gen2v2 Authenticate and ISO/IEC 29167-11
Supports Impinj Gen2X
Antenna Circular Polarized Antenna (3 dBi)
Power 1W (30 dBm, support +5~+30 dBm adjustable)
2W Optional (33 dBm, for Latin America, etc.)
Max Read Range 30m (Impinj MR6 tag, size 70 x 15mm)
28m (Impinj M750 tag, size 70 x 15mm)
31m (Alien H3 Anti-Metal tag, size 130 x 42mm)
Fastest Read Rate 1300+ tags/sec
Communication Mode Pin Connector / Bluetooth
Note * R66 + UHF Sled
* Ranges are measured in the open outdoors and low interference environment, and rate is measured in a laboratory low interference environment, they are affected by tags and environment.;
* This function is optional

UHF3
Engine CM-5N module based on Impinj E510
Engine CM-5N module based on Impinj E510
Frequency 865-868 MHz / 920-925 MHz / 902-928 MHz
Protocol EPC C1 GEN2 / ISO18000-6C
Supports Impinj Gen2X
Antenna Linear Polarized Antenna (-5 dBi)
Power 1 W (+5 dBm to +30 dBm adjustable)
Max Read Range 2.4m (Impinj MR6 tag, size 70 x 15mm)
2.6m (Impinj M750 tag, size 70 x 15mm)
2.7m (Alien H3 Anti-Metal tag, size 130 x 42mm)
Note * R66 UHF (Built-in)
* Ranges are measured in the open outdoors and low interference environment, and rate is measured in a laboratory low interference environment, they are affected by tags and environment.
* Optional; This version does not support pistol

Fingerprint1
Sensor TCS1
Sensing Area (mm) 12.8 × 18.0
Resolution (dpi) 508 dpi, 8-bit greylevel
Certifications FIPS 201, STQC
Format Extraction ISO 19794, WSQ, ANSI 378, JPEG2000
Fake Finger Detection Support by SDK
Security AES, DES key encryption of the host communication channel
Note * Optional; Fingerprint version does not support pistol

Fingerprint2
Sensor TLK1NC02
Sensing Area (mm) 14.0 X 22.0
Resolution (dpi) 508dpi, 256 greylevel
Certifications FIPS 201, FBI
Format Extraction ISO19794, WSQ, ANSI 378, JPEG2000
Fake Finger Detection Support by SDK
Security AES, DES key encryption of the host communication channel
Note * Optional; Fingerprint version does not support pistol

Camera
Camera Rear 13 MP Autofocus with flash
Facial Recognition lSO19794-5 Compatible

NFC
Frequency 13.56 MHz
Protocol ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips M1 card (S50, S70), CPU card, NFC tags, etc.
Range 2-4 cm

Optional Accessories
Accessories Separate handle with one button；

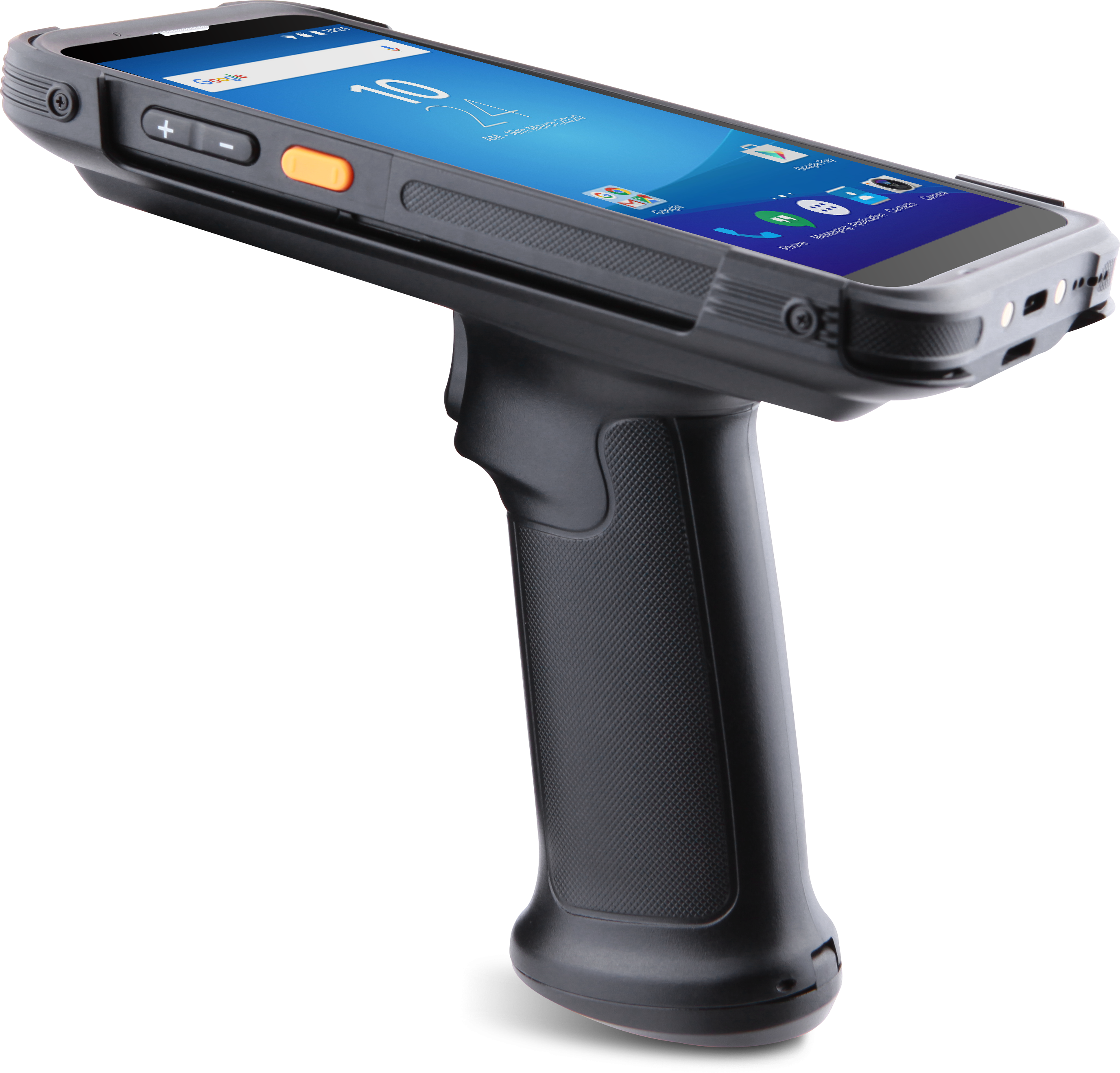

Handle + battery (handle battery 5200mAh, one button) ;
UHF back clip + handle (5200mAh, one button) ;

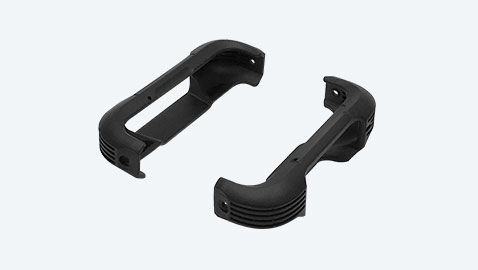

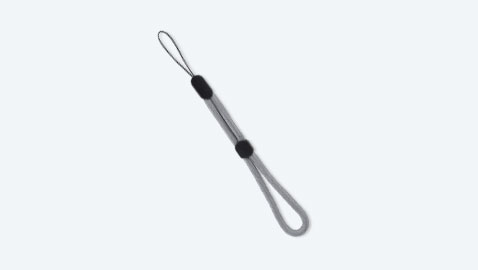

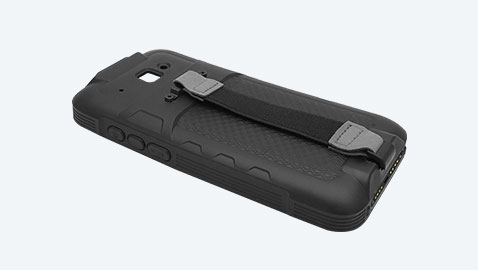

Wrist Strap; Rubber Bumper; Charging Cradle;Lanyard grey
Note * See details in Accessory Guide
