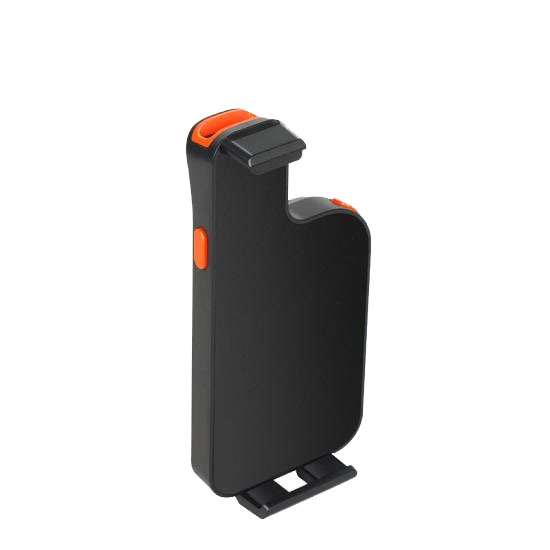

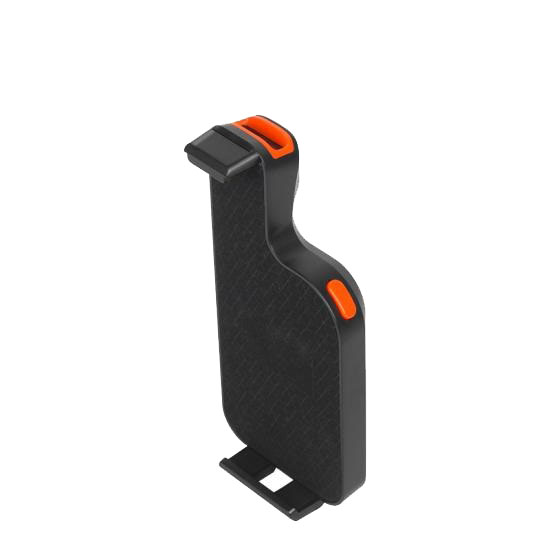

RM7 phone scanner

RM7 Back clip 2D scanner for phone

2D Wireless Bluetooth 2.4G Barcode Scanner Back Clip for Phone Best QR Code Scanner CMOS 1MP Cordless Large Capacity 3000mAh Battery

Features

1. Can interpret all kinds of 1D/2D codes

2. Support Android/IOS system, can replace PDA, scanning gun, mobile phone scanning

3. 512000 characters can be stored in offline/inventory storage mode

4. Bluetooth connection, easy and fast

5. Large capacity battery 3000mAh

6.Operating times up to 48h



2D Wireless  Barcode Scanner Back Clip for Phone Best QR Code Scanner CMOS 1MP Cordless Barcode Scanner



2D Wireless Barcode Scanner 1280*800Pixels Portable Barcode Scanner Bluetooth 2.4G Clip-on Barcode Scanner QR Code Reader Back Clip for Phone



Application Range

Specification

Specification

Performance Parameters

Light Sources

White LED lighting when decoding, gradient lighting wiht distance, laset cross indication

Supported Symbologies

1D: UPC-A, UPC-E,Code 39, Code 93, Code32, Code 128, EAN-8, EAN-13, Codabar, Interleave 2 of 5, ISBN, ISSN, MSI-Plessey, Code 11, Industrial 25, IATA25, Matrix 2 of 5.

2D: QR Code, Data Matrix, Micro QR, PDF417, Micro PDF417, Aztec.

Scanning Principle

Image CMOS 1MP

Resolution

1280*800 Pixels

Scan Method

Manual/Continuous/Automatic inductive scanning

Scan Angle

Yaw 45°, Rotation 360°, Pitch 45°

Field of view

48°(H) * 36°(V)

Precision

≥3mil

Contrast

≥20%

Depth of scan field

EAN-13: 4-55cm

Error Rate

Less than 1/5million

Interface

Receiver: USB Type C-HID; Bluetooth: HID, BLE, SPP

Communication Mode

Pairing dedicated receiver: 2.4G communication

Pairing Mobile Bluetooth Devices: Dual-mode Bluetooth

Transmission Distance

50M (Open area)

Storage Mode

Offline Storage Mode: When the scanner exits the connection range,

the data is automatically stored. Storage capacity is 512000 characters.

Inventory storage mode: Scanner can enter inventory mode,

storage capacity is 512000 characters.

Pairing Mode

One to One: One Scanner Pairs One Receiver,

One scanner paired with a bluetooth mobile device.

Prompt Function

1. power prompt  2. connection prompt

Receiver:

Delicated Bluetooth flash drive receiver, Android/IOS mobile devices

Physical  Parameters

Dimensions

153mm*36mm*69mm

Weight

120g

Material

ABS+PC

Cable Length

1M

Environmental Parameters

Operating Temperature

-20℃ ~50℃

Storage Temperature

-40℃~70℃

Relative Humidity

5%~95% RH（Non-condensing）

Ambient lighting

0~100000LUX

Drop/Shock Resistance

Withstands multiple times 3 meters drops to concrete

Electrical Parameters

Voltage

DC5V±5%

Operating Current

when not scanning code ≥26mA; when scanning code ≥250mA

Standby Current

0mA(Standby is to cut off battery power)

Charging Mode

Square USB charging cable, plug straight charge

Battery Working Time

up to 48h

Charging Time

3-4.5h

Lithium battery

3000mAh

Charging Model

TypeC charging cable, plug-in direct charging
