RHINO MOBILITY RM4920 COUNTER SCANNER, 1D,2D, 1.3MP

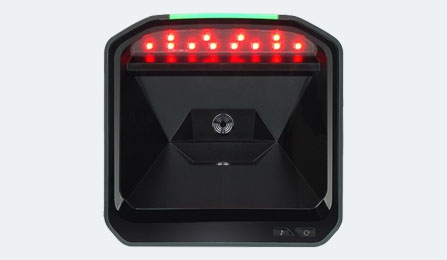

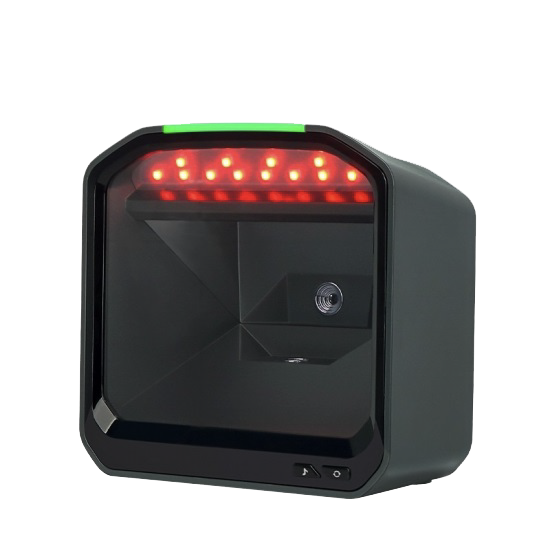

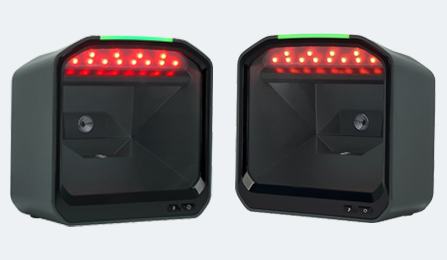

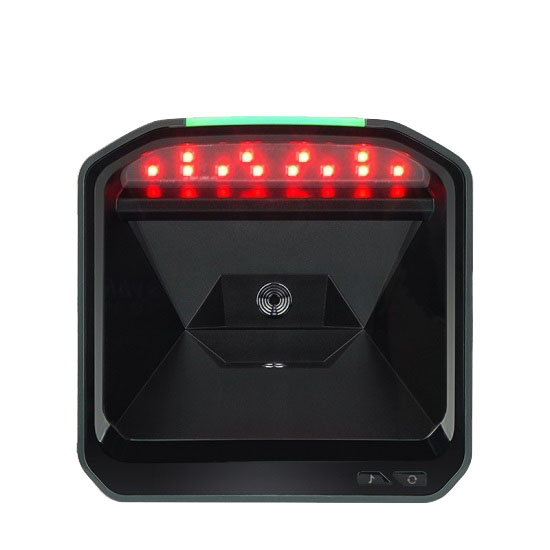

Counter Scanner RM4920

EASY TO DEPLOY HIGH-PERFORMANCE “CAN’T MISS” ON-COUNTER SCANNING

Features

  • CMOS advanced decoding algorithm

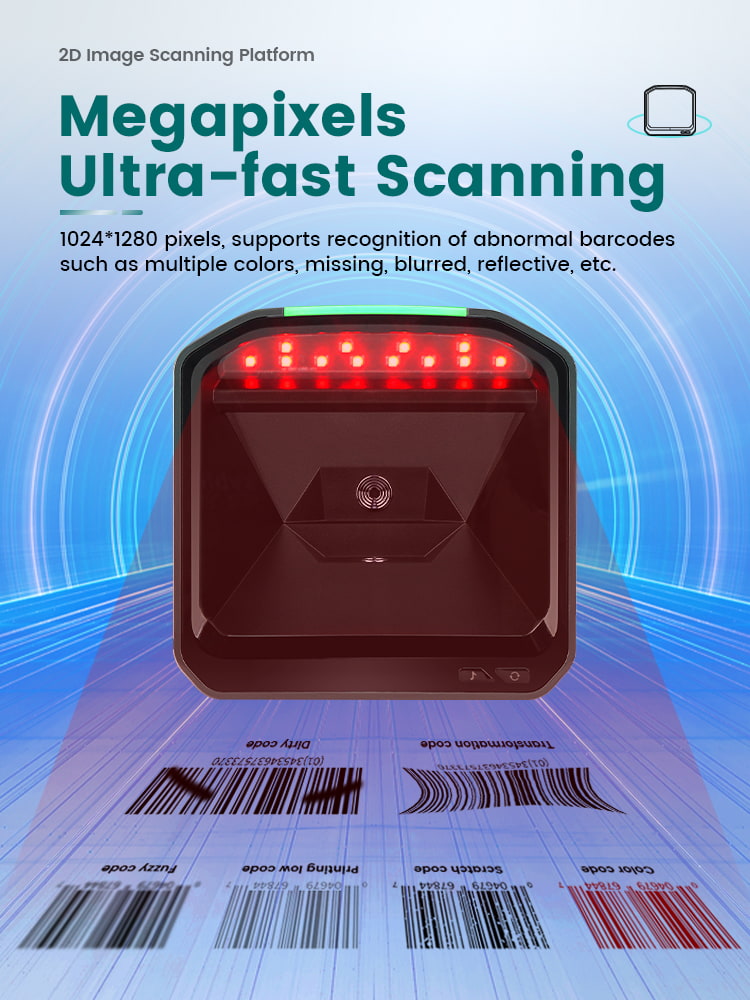

  • Megapixels 1.3MP, extremely fast scanning of 1D and 2D barcodes

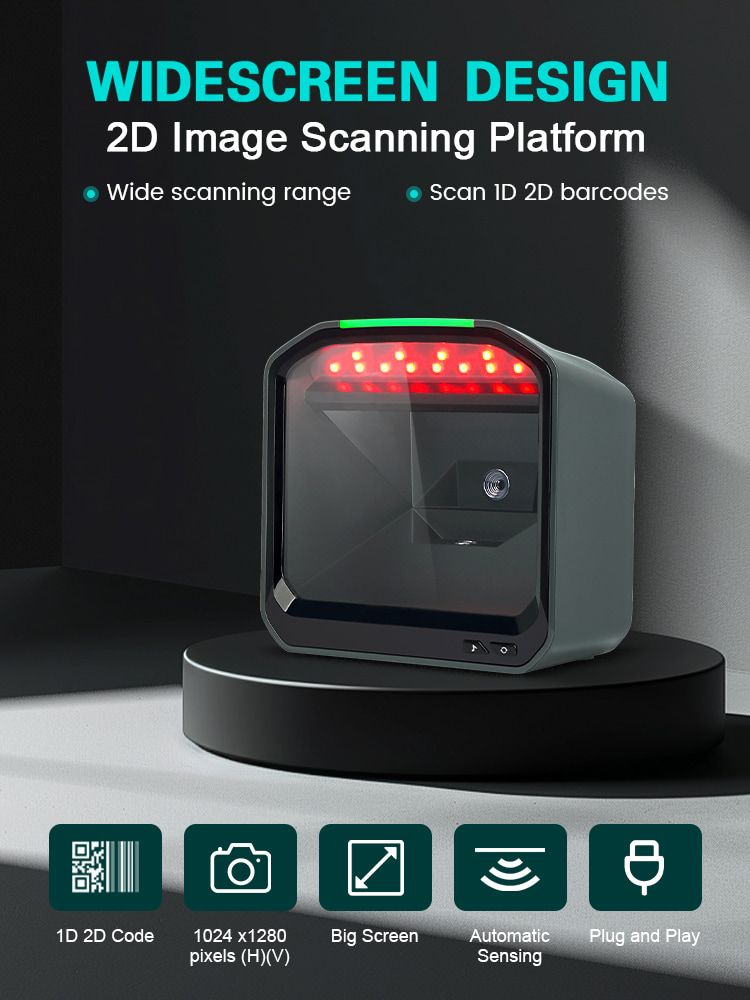

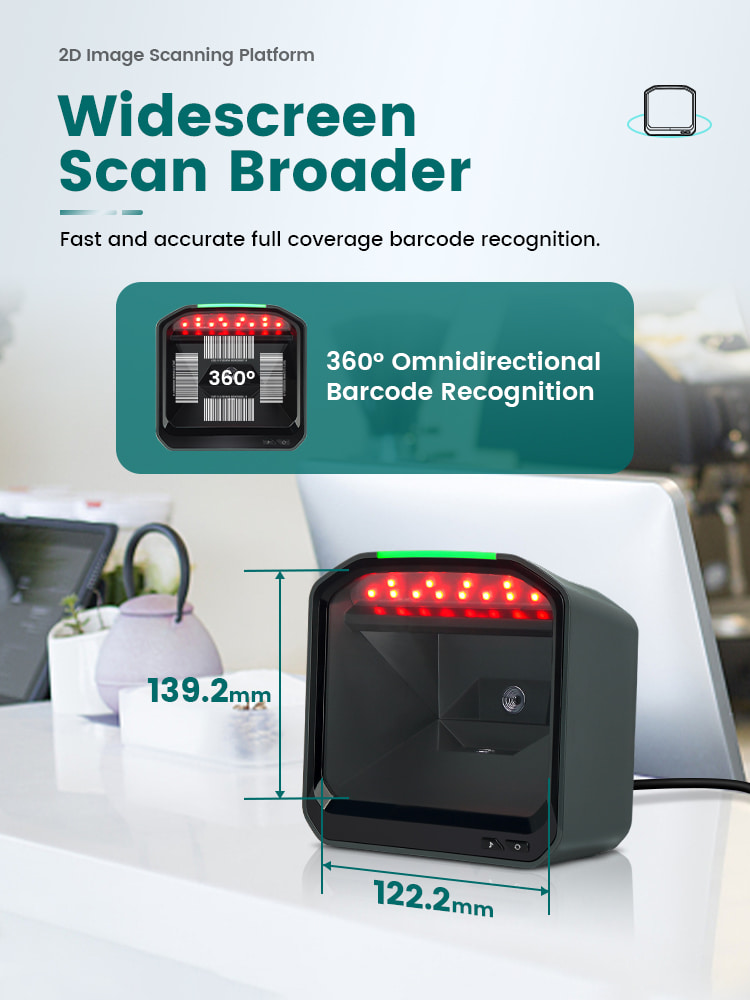

  • Widescreen design, wide-angle scanning window, barcodes can be scanned at will
  • Light and buzzer scan code feedback
  • Automatic sensing and automatic scanning

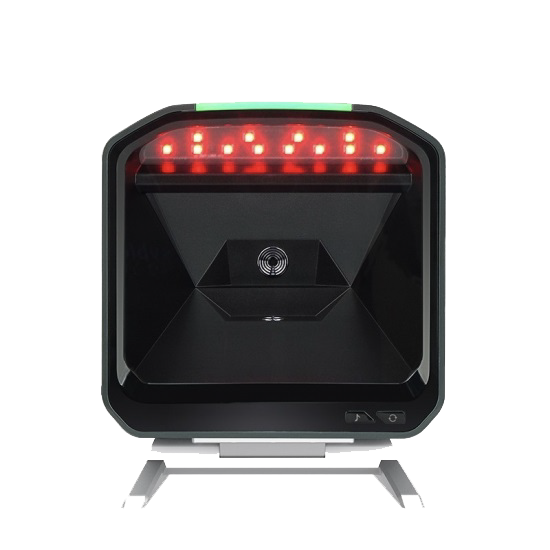

  • Optional metal Base, stable and reliable.
  • Reading more than two pharmacies barcodes at the same time.



EASY TO DEPLOY HIGH-PERFORMANCE “CAN’T MISS” ON-COUNTER SCANNING

This 2D Omni desktop hands free barcode scanner with widescreen design, automatic sensing and automatic scanning technology. Fast and accurate scanning ability, the speed up to 120 FPS. It can read all mainstream 1D 2D codes DM PDF417 Data Matrix QR codes.

RM4920  is the Hands-free omnidirectional desktop barcode reader, which have Megapixels, CMOS advanced decording algorithm. Strong recognition of folding code, stain code, vacuum packaging bar code etc. Pressing the button to easily switch the 1D 2D code.It supports for POS retails store supermarket warehouse library pharmacy logistics.

Next generation swipe speeds up to 100 in./2.5 m per second

Enables users to capture bar codes as fast as they can pass items in front of the scan window.

Largest field of view and omni-directional scanning for can’t-miss “swipe-and-go” scanning simplicity

First-time every time capture of 1D and 2D bar codes displayed on mobile devices or printed on paper labels, even if they are damaged, poorly printed or dirty.

Superior durability

Multiple features make the RM4920 the most durable device in its class. The recessed scan window prevents marks and scratches that can degrade scanning performance and lifecycle. In addition, the electronics are located in the top area of the RM4920 to prevent damage and protect uptime in the event of a spill

Scan virtually any bar code, in any condition, on any medium

Virtually invisible illumination

The LEDs are recessed behind the scan window, where they are barely visible and won’t disturb customers or cashiers.

Intelligent Imaging technology for next generation scanning performance

Resets the bar for 2D imaging by improving decode performance and snappiness, dramatically improving the user experience, user productivity, throughput and customer wait times.



Decode Ranges (Typical)6

Symbology/Resolution Near/Far
Code 39: 3 mil 2.2 in./5.6 cm to 5.0 in./12.7 cm
Code 39: 20 mil 0 in./0 cm to 36.8 in./93.5 cm
Code 128: 3 mil 2.6 in./6.6 cm to 4.5 in./11.4 cm
Code 128: 5 mil 1.6 in./4.1 cm to 8.4 in./21.3 cm
Code 128: 15 mil 0 in./0 cm to 27.1 in./68.8 cm
PDF 417: 5 mil 2.3 in./5.8 cm to 6.4 in./16.3 cm
PDF 417: 6.7 mil 1.8 in./4.6 cm to 8.5 in./21.6 cm
UPC: 13 mil (100%) 0 in./0 cm to 24.0 in./61.0 cm
Data Matrix: 7.5 mil 2.1 in./5.3 cm to 6.9 in./17.5 cm
Data Matrix: 10 mil 1.1 in./2.8 cm to 9.9 in./25.1 cm
QR: 20 mil .1 in./.3 cm to 17.6 in./44.7 cm











Specification

SPECIFICATIONS

Performance Parameters

Sensor Pixels:

 1.3MP, 1024 x 1280 pixels (H)(V)

Supported Symbologies

1D: Codabar, Code39, Code32, Pharmaceutical (PARAF)., Interleaved 2 of 5,NEC 2 of 5, Code 93, Straight 2 of 5lndustial, Straight 2 of 5 IATA,Matrix 2 of 5, Code 11Code128, GS1-128, UPC- A. UPC-E, EAN/JAN-8,EAN/JAN-13, MSI, GS1 DataBar Omnidirectional, GS1 DataBarLimited,GS1 DataBar Expanded, China Post(Hong Kong 2 of 5), Korea Post.

2D: PDF417, Micro PDF417, GS1 Composite Codes, QR Code, Data Matrix,MaxiCode, Aztec, HANXIN

Scan Range:

0-300mm(EAN 13 13mil, PCS=90%)

Print Contrast:

20%

Field of View:

44°(H), 34°(V)

Motion Tolerance:

4 meters/second

Scan Mode:

Automatic Induction Scanning

Recognition angle range:

Turn ±360°, Elevation ±65°, Declination ±65°

Reading Tips:

Indicator light: Green light flashes to indicate code reading, green light indicates power supply;

Speaker: startup prompt, code reading prompt

Interface:

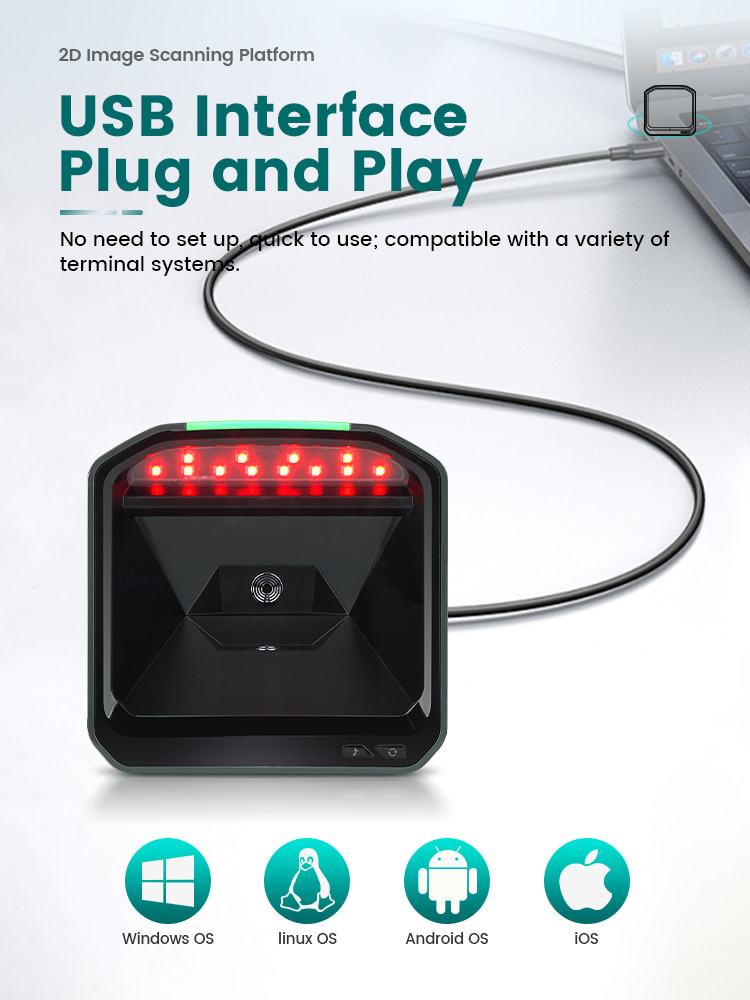

USB(Drive-Free), RS232, USB-COM

Physical  Parameters

Dimensions

150mm*153mm*85mm

Material

ABS+PC

Cable Length

2 M

Environmental Parameters

Operating Temperature

-20℃ ~60℃

Storage Temperature

-30℃~70℃

Relative Humidity

5%~95% RH(Non-condensing)

Ambient lighting

0~100000LUX

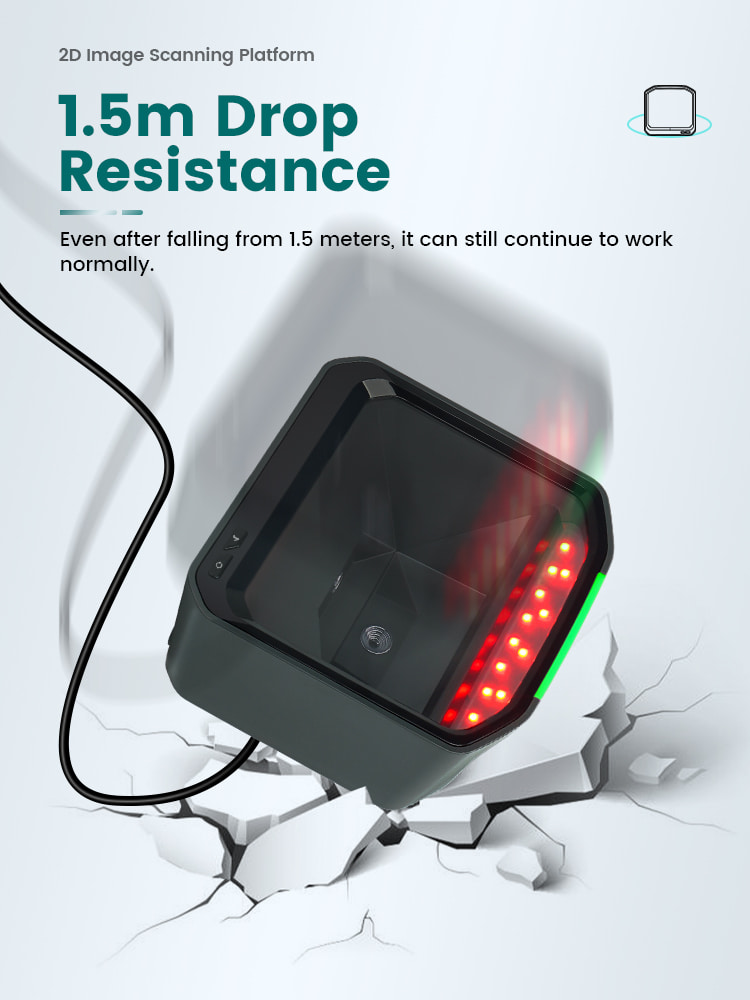

Shock Resistance:

Withstands multiple times 1.5 meters drops to concrete

Electronic Parameters

Working Voltage

DC5V±5%

Current

 Standby current 190mA,Working current 240mA
