RHINO MOBILITY RM6

2D Portable Bluetooth Barcode Scanner

2D portable barcode scanner with LED display screen wireless barcode scanner for warehouse store library pharmacy supermarket

Features

1. High sensitive, fast and accurate reading of various 1D and 2D barcodes

2. High-definition display, real-time viewing of barcode data, convenient and quick

3. Dual-mode wireless transmission mode: 2.4G and Bluetooth mode

4.  512,000 characters can be stored in offline/inventory storage mode

5. Can be paired directly with Bluetooth-enabled mobile phones, tablets, and laptops





Model: RM6/High performance Ring Scanner 1280*1024 Pixels

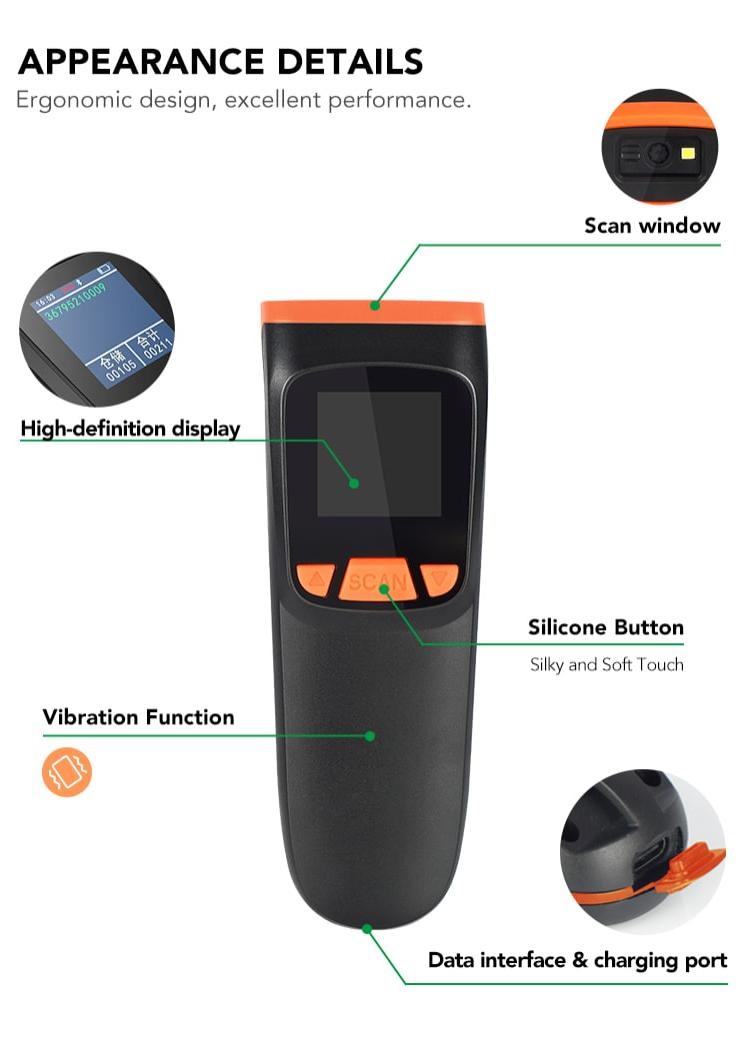

RM6 is RHINOMobility new design 2D portable barcode scanner with LED screen display, Through Bluetooth and 2.4G fast connection, it is compatible with iOS, Windows and Android, which is very suitable for retail stores, supermarkets, warehouses, libraries, pharmacies, logistics and other places.



SUPER DECODING ABILITY

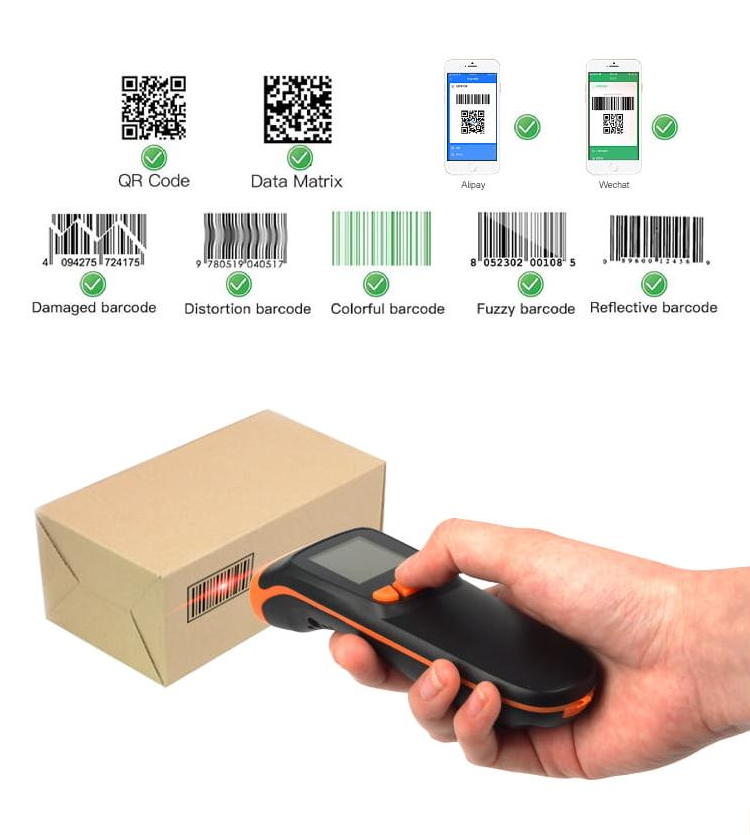

Easily Reads 1D 2D Codes From Paper and Screen

Multiple Transmission Modes

2 in 1 Connetion Modes



Support Multiple Languages

Connect To the USB Port of Cash Register, Laptop, PC, Smartphone



Support Multiple Languages

Connect To the USB Port of Cash Register, Laptop, PC, Smartphone

Application Scenarios

Widely Used Various Industries

Specification

Performance Parameters

Light Sources

617nm LED Aimer,White LED

Supported Symbology

1D: EAN-13, EAN-8, UPC-A, UPC-E, UPC-A, Code 39, Code 93, Code 32, Code 128, Codabar, Interleaved 2 of 5, ISBN, ISSN, IATA 2 of 5, Industrial 2 of 5, MSI Plessey, Matrix 2 of 5.

2D: QR Code, Data Matrix, PDF417, Micro QR, Micro PDF417, Aztec.

Resolution

1280*1024 Pixels

Scan Method

Manual/Continuous/Automatic inductive scanning

Scan Angle

Yaw 45°,Rotation 360°,Pitch 45°

Field of View

48°(H)x36°(V)

Precision

≥5mil

Contrast

≥20%

Depth of scan field

40-250mm(EAN13 13mil); 40-100mm(Code39 4mil); 20-170mm(QR code 15mil)

Error Rate

Less than 1/5million

Interface

Receiver: USB-HID; Bluetooth: HID, BLE, SPP

Wireless Communication

Pairing dedicated receiver: 2.4G communication

Pairing Mobile Bluetooth Devices: Dual Mode Bluetooth

Transmission Distance

50-100M (Open distance)

Screen Function

View barcode data in real time; View stored data in real time;

Check power in real time; Real time display;

Scanner can be set through the screen.

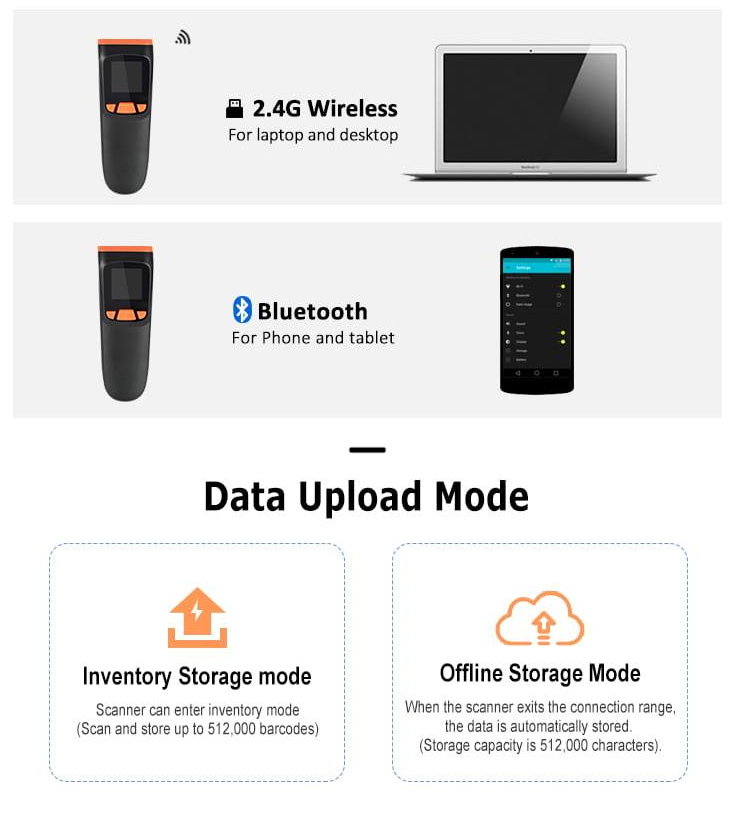

Storage Mode

Offline Storage Mode: When the scanner exits the connection range,

the data is automatically stored. Storage capacity is 512000 characters.

Inventory storage mode: Scanner can enter inventory mode,

storage capacity is 512000 characters.

Pairing Method

Pair by barcode; Set up pairing via screen.

Pairing Mode

One to One: One Scanner paired with One receiver,

One scanner paired with a Bluetooth mobile device.

Receiving End

Dedicated Bluetooth U disk receiver, Android/IOS mobile device

Physical  Parameters

Material

ABS+PC

Cable Length

1M

Environmental Parameters

Operating Temperature

-20℃ ~50℃

Storage Temperature

-40℃~70℃

Relative Humidity

5%~95% RH（Non-condensing）

Ambient lighting

0~100000LUX

Drop/Shock Resistance

Withstands multiple times 1.5 meters drops to concrete

Electrical Parameters

Voltage

DC5V±5%

Operating Current

when not scanning code ≥26mA; when scanning code ≥250mA

Standby Current

0mA(Standby is to cut off battery power)

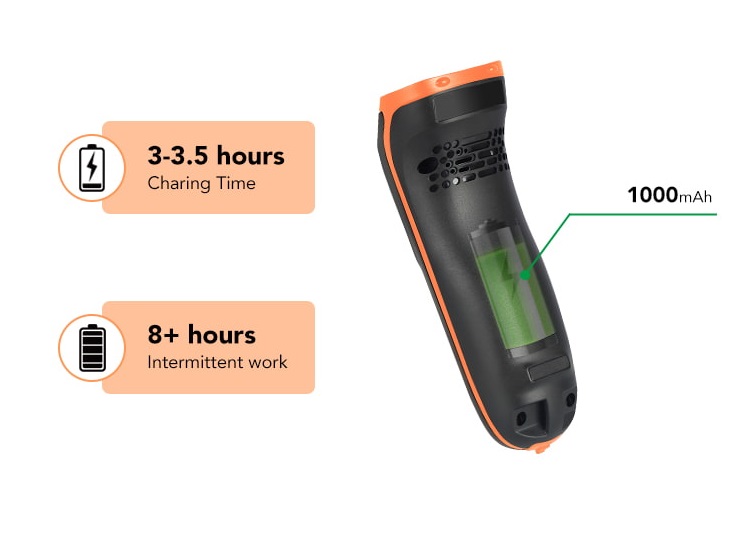

Battery Working Time

Continuous work for 4 hours; Intermittent work for more than 8 hours.

Charging Time

3-3.5h

Lithium battery

1000mA

Charging Model

Type C USB charging cable, plug-in straight charging.
